Emission Control

Pollutants and Emission Standards

Ideally, an engine combusts fossil fuel and air into CO2 and H2O. In reality, no matter how clean an engine combusts, it still produces some by-products, i.e. pollutants. The key pollutants are:
  • Carbon monoxide (CO): colorless but toxic.
  • Particulate Matters (PM): soot or smaller particles. Results in black smoke and harms to respiration system.
  • Nitrogen oxides (NOx): consists of NO and NO2. Results in acid rain and harms to human. Also leads to smog (see below).
  • Hydrocarbons (HC): large molecules of hydrogen-carbon compounds. Again harmful to human.
  • Non-Methane Hydrocarbons (NMHC): HC excluding methane. As methane reacts little with environment and has little effect to health, it is taken out of measurement.
  • Non-Methane Organic Gases (NMOG): US emission standards prefer to measure NMOG instead of NMHC. NMOG is NMHC plus oxygenates such as aldehydes, alcohols, alkanes and aromatic compounds. Therefore it is always a little bit more than NMHC.
The oxygenates in NMOG are usually VOCs (volatile organic compounts). Under sunlight, they can react with NOx to form ozone (O3). Ground-level ozone causes not only smog but also lung diseases and asthma.

To deal with the pollution problems, US mandated the first nation-wide emission standard in 1975. Europe and Japan passed similar legislations in the early 1990s. Over the years, emission standards have been tightening step by step. For example:

EU standards for gasoline passenger cars:

Stage
Effective
NOx
HC
NMHC
HC+NOx
CO
PM
Euro 1
1993
-
-
-
970
2720
140
Euro 2
1996
-
-
-
500
2200
-
Euro 3
2000
150
200
-
-
2300
-
Euro 4
2005
80
100
-
-
1000
-
Euro 5
2009
60
100
68
-
1000
5
Euro 5b
2011
60
100
68
-
1000
4.5
Euro 6
2014
60
100
68
-
1000
4.5

EU standards for diesel passenger cars:

Stage
Effective
NOx
HC+NOx
CO
PM
Euro 1
1993
-
970
2720
140
Euro 2
1996
-
700
1000
80
Euro 3
2000
500
560
640
50
Euro 4
2005
250
300
500
25
Euro 5
2009
180
230
500
5
Euro 5b
2011
180
230
500
4.5
Euro 6
2014
80
170
500
4.5

(Unit: mg/km)

It is increasingly likely that gasoline and diesel emission standards will be unified into a common standard in the future.


Catalytic Converter

The Federal emission standard US enforced in 1975 was so stringent that car makers had to install catalytic converter to every car sold there (remark: the only exception was Honda Civic, whose CVCC technology managed to comply without using catalytic converter). A catalytic converter is installed at the downstream of the exhaust system. It uses catalysts such as platinum, rhodium and palladium to convert NOx into nitrogen and oxygen. The oxygen then reacts with CO to become CO2, or reacts with HC to become CO2 and H2O. These chemical reactions may happen in natural environment, but the catalyst accelerates the process massively thus is capable to treat most of the pollutants emitted.

On the downside, the presence of catalytic converter slows down the exhaust flow and creates back pressure, reducing engine output. That is why when Euro 1 standard was enforced in 1993, we saw most European cars lost at least several horsepower.

Catalytic converters have their limitations. One of which is sulphur pollution. Sulphur inherently existed in fuel could pollute some precious metal catalyst and render the latter useless. This problem was finally solved when governments mandated oil companies to supply low-sulphur fuel.

Another problem is warm up time. Catalyst needs at least 400°C to function effectively. When the car starts from cold, it takes time for the exhaust gas to heat up the exhaust system and bring up the catalyst to this temperature. Durng this period, the car emits high level of pollutants. As newer emission standards measure also cold-start emission, car manufacturers have to search for solutions. Popular solutions include close-coupled catalyst, HC traps and electrically heated catalyst.

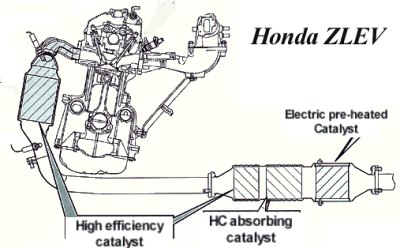

Honda's ZLEV engine announced in 1997 was designed to meet the ZLEV (zero level emission vehicle) standard in California. It used all 3 technologies to cut cold-start emission:

1. A close-coupled catalyst is added close to the exhaust port so that it could be heated up faster. The shorter the path, the less heat is wasted on the exhaust piping.

2. An HC-absorbing catalyst traps the hydrocarbons temporarily until the the main catalyst has reached operating temperature, then it releases the hydrocarbons.

3. The main catalyst is pre-heated electrically so that it could reach working temperature quicker.



Diesel Particulate Filter (DPF)

Particulate emission is always the biggest headache of diesel engines. These particulates are composed of mainly carbon and hydrocarbons. They lead to black smoke and smog which is critical to the air quality of urban areas. Small particulate matters (PM2.5 or below) may penetrate into lungs and cause serious health problems. Therefore, lower and lower PM limits were imposed in the past 2 decades for diesel car emission. To deal with tighter requirements, PSA group developed the first mass production diesel particulate filter in 2000. It was first used on the company's 2.2 HDi engine on Peugeot 607. By 2009, all its diesel cars were already equipped with DPF.

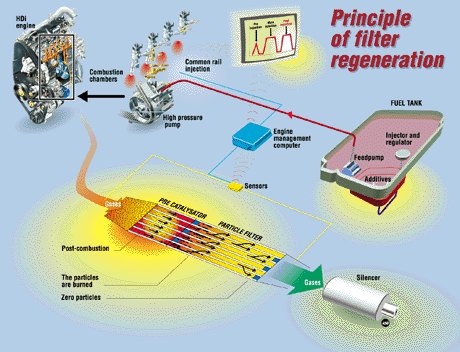

Basically, PSA’s DPF is a porous silicon carbide unit, comprising of passageways which have a property easily trap and retain particulates from the exhaust gas flow. Before the filter surface is fully occupied, these particulates should be burnt up, becoming CO2 and water and leaving the filter accompanied with exhaust gas flow. We call this process as regeneration.

Normally, regeneration takes place at a temperature around 550°C. Problem is, such a high temperature is not obtainable in reality. The exhaust gas of diesel engines is always cooler than gasoline engines. When the car is stuck in traffic or driving slowly in town, its exhaust gas temperature may drop to between 150 and 200°C.



Fortunately, the new common-rail injection technology employed by PSA's diesel engines helped. Gifted by its high-pressure, precise injection during a very short period, the common-rail system can introduce a "post-combustion" by injecting a small amount of fuel during expansion phase. This increases the exhaust flow temperature to around 350°C.

Then, a specially designed oxidizing catalyst located near the entrance of the particulate filter unit combusts the remaining unburnt fuel coming from the post-combustion. This raises the temperature further to 450°C.

The last 100°C required is fulfilled by adding an additive called Eolys to the fuel. Eolys lowers the operating temperature of particulate burning to 450°C, now regeneration occurs. The liquid-state additive is store in a small tank and added to the fuel by pump. The DPF unit needs to be cleaned at dealerships every 80,000 km by high-pressure water in order to get rid of the deposits resulting from the additive.

One more thing to be solved is the influence of "post-combustion". It increases engine torque when the driver doesn’t expect. Therefore the engine management system has to regulate the torque by adjusting the amount of normal fuel injection, pre-injection etc. and turbocharger’s boost pressure to compensate.



Selective Catalytic Reduction (SCR)

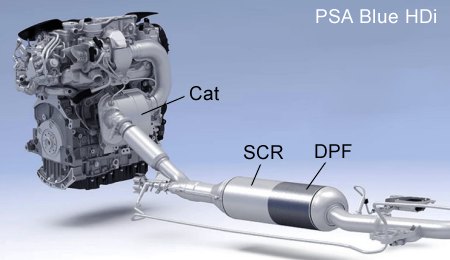

Apart from particulate matter, diesel engines also emit higher levels of NOx than gasoline counterparts, since NOx is more likely to be formed under conditions of lean mixture and high compression. As Euro 6 and US Tier 2
emission standards have NOx limits tightened significantly, most diesel engines have to seek help from Selective Catalytic Reduction, which is capable to reduce NOx by 90 percent.

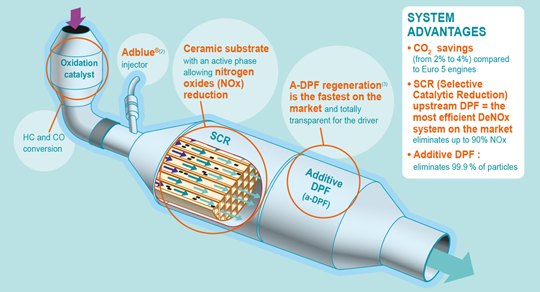

SCR converter injects a urea solution, commercially known as AdBlue, to the exhaust stream. It reacts with NOx with the aid of catalyst (coated on substrate), resulting in nitrogen and water vapour. The AdBlue is stored in a dedicated tank and can be refilled, normally every several thousand miles.





Exhaust Gas Recirculation (EGR)

Exhaust Gas Recirculation is another technology to reduce NOx emission. In fact, it had been widely used in diesel engines well before the popularity of catalytic converters.

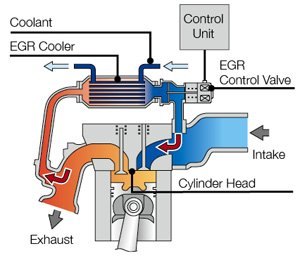

A typical EGR system adds a recirculation pipe to bridge between intake and exhaust manifolds, drawing some exhaust gas back into the combustion chamber. A valve in the pipe controls the amount of EGR. The pipe may be added with a liquid cooler to cool the exhaust gas, resulting in higher efficiency.

Another possible mechanism is simpler. It uses variable valve timing to delay the closure of exhaust valves, so that some exhaust gas is drawn back from the exhaust manifold during the intake stroke. This is called "internal EGR".

How can EGR reduce NOx emission? As the combustion chamber is now filled with less fresh air and some exhaust gas, which consists of mostly nitrogen, CO2 but little oxygen, the total oxygen content is reduced. This means less fuel injection is required. With less fuel and oxygen, the combustion results in less power and heat. The corresponding lower temperature leds to less NOx generated.

Another reason for the lower combustion temperature is that the mixture of more nitrogen and less oxygen results in a higher specific heat capacity (energy needed to heat up the material by 1K), which means the mixture can absorb more energy.

However, it must be noted that some modern gasoline engines also use EGR, not to cut NOx emission (which is inherently lower than diesel engines), but to improve fuel efficiency. One example is Toyota 1NR-FKE 1.3-liter engine. Running EGR can save fuel because:
  • The lower combustion temperature results in less thermal loss through cylinder head/block, exhaust and cooling system.
  • As EGR reduces power, the throttle has to be opened wider to achieve the same output. This reduces pumping losses, especially when the engine is running at lighter loads.
  • The presence of exhaust gas in combustion chamber slows the reaction rates and suppresses knocks. This allows the engine to advance ignition timing without causing knocks. As a result, the combustion process can be lengthened and the burning is more complete.
