Mercedes S-class (1959)

In the past 50 years, Mercedes-Benz S-class was widely recognized as the best series production luxury car in the world. Without this car, Mercedes would not have been considered as the best luxury car manufacturer, especially now its sales volume is eclipsed by BMW. The point is, no one delivers luxury, comfort and safety as good and as consistently as the big Mercedes.

How far the history of S-class goes back is always debatable. Mercedes started using the name "S-class" in 1972 (on series W116), but the line obviously had been existing long before that. Because the early cars got only model names, say, 220 or 250SE, it is impossible to tell whether they are S-class models from names. It was not until 1993 that the new corporate nomenclature (model designation started from C, E or S and followed by 3 digits denoting engine capacity) could clearly identify the model class.

Mercedes itself said the earliest S-class was W187 series (born 1951). According to wikipedia (well, not always a reliable source) the S-class started from W180 (1954). In my opinion, neither deserved the S-class title. While you may trace its roots to these cars, they were not good and distinctive enough to be seen as a top notch luxury car, because they were mechanically and visually close to the other offerings from Mercedes-Benz then. If S-class means the classiest production model of Mercedes, then the first S-class has to be W111/W112 from 1959.

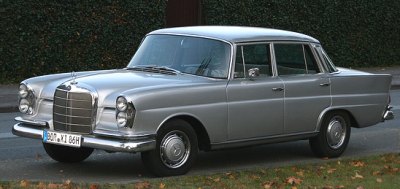

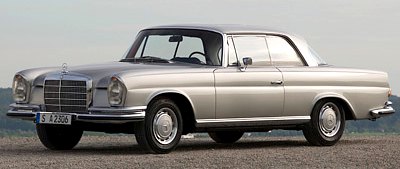

W111 / W112 (1959)



Which luxury brand dominated the late 1950s ? Not Mercedes-Benz of course. It was Cadillac. As you can see from our article of the 1957 Cadillac Eldorado Brougham and the 1959 Cadillac, the American luxury brand was leading the fashion and technology of the time thanks to the wealth of General Motors. Born in 1959, Mercedes W111 and W112 series could not escape from the Cadillac's influence, most notably its "tailfins" and self-leveling air suspension. However, it also got some technological breakthroughs, such as the world's first safety chassis (a rigid passenger cell sandwiched between front and rear crumple zones) and the first all-wheel disc brakes in the class. Besides, its 4-speed automatic transmission, Bosch mechanical fuel injection, all independent suspensions (by double-wishbones up front and low-pivot swing axle at the rear) and dual-circuit braking system were also considered advanced features then.



The W111 series was the mass market version. It was powered by Mercedes' well-proven SOHC straight-six engine displacing 2.2 liters. Fitted with carburetors it was called 220 or 220S, while fuel-injected version was called 220SE. Both saloon and coupe version were offered. Autocar magazine tested a 220SE Coupe in 1961 and was impressed by its overall completeness, no matter speed, roadholding, ride, safety, comfort or refinement. The 120hp car achieved a two-way average of 106 mph in the test, respectable for a large car.

W112 was the luxurious version of W111. Apart from more chromed features and luxury equipment (including air suspensions, all-round disc brakes and power steering), it was available with a 100mm longer wheelbase version. Moreover, it was powered exclusively by a 185hp 3.0-liter fuel-injected straight-six, which was the mass production and alloy-block version of the one serving 300SL. The resultant 300SE was good for 114 mph and 0-60 in just over 10 seconds.

The W111 / W112 was probably not yet the best luxury car in the world. However, from its advanced technology and overall refinement it had already shown a promising future.

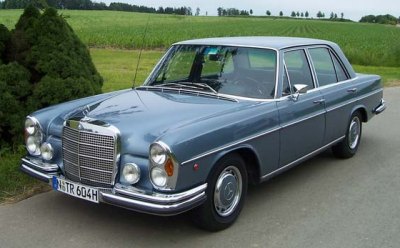

W108 / W109 (1965)



Having seen it in person, I think the W108/W109 series from 1965-72 is the most graceful looking S-class of all (although W126 is close). On the one hand, it retains the classical elements of traditional Mercedes-Benz designs, such as a round bonnet, a prominent radiator grille and a lot of chromes. On the other hand it introduced a modern shape that is characterized by clean lines, large glass area and rounded corners. In other words, it combined the best of both worlds. This remarkably refined design was penned by Paul Bracq, who had a lot of influence to Mercedes in the 1960s and BMW in the 1970s.

Mechanically, W108/109 was a development from the outgoing generation. The basic design of suspensions and powertrains were carried over, but the six-cylinder engine was enlarged from 2.2 to 2.5 liters and later on 2.8 liters. The latter came with Bosch D-Jetronic electronic fuel injection, which was a progress from the previous mechanical injection. The 2.8-liter engine powered not only 280SE, but also the range-topping 300SEL since the old 3.0-liter engine retired in 1967. Such embarrassing situation continued until 1969 when Mercedes finally developed a new V8 engine. Destined primarily to the USA market, it appeared in two forms: 3.5-liter 200hp or 4.5-liter 230hp. Performance and image were greatly enhanced.



As before, W108 was the mass market version, while W109 was luxurious version with 100mm longer wheelbase and air suspensions. The W108 models were called 250S, 250SE, 280S or 280SE depending on engines. Body styles included sedan, coupe and convertible. All W109 models were called 300SEL regardless of engine. Interestingly, 3.5-liter and 4.5-liter cars were never called 350SE or 450SEL etc., but 280SE 3.5, 280SE 4.5, 300SEL 3.5 and 300SEL 4.5.

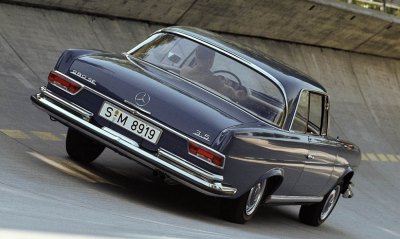

Also worth noting is the high-performance 300SEL 6.3, which was fitted with a mega V8 from the 600 limousine. It will be covered by a separate article.

Thanks to its solid build quality, superb mechanical refinement and elegant yet restrained style, the W108/109 S-class overtook the American Cadillac and Lincoln to be the world's best luxury car. Since then it never looked back.

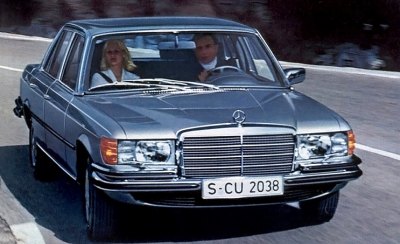

W116 (1972)



This S-class flooded the streets in my childhood. Nevertheless, I do not have very fond memory of it, blame to its unrefined design. The W116 was born at a time new safety regulations getting effective. This demanded plastic bumpers and rubber side stripes. Unfortunately, like everyone else, Mercedes had not masterminded the art of integrating these safety features into the body shell, so they looked ill-fitted and at odds to the rest of the car.

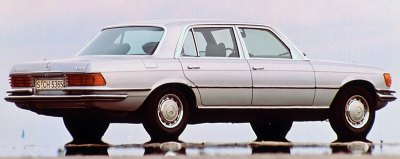

Style-wise, the W116 was a brave (an unsuccessful) attempt for modernization. Its body shell was widened and lowered. The radiator grille evolved shorter and wider, while traditional circular headlights were replaced with two large rectangular ones with signal lamps integrated. Weight went up by around 100 kg, mostly due to improved safety. To enhance crash protection, the cabin section was made stiffer, and further research improved the progressive crumpling of the front and rear crumple zones. In the cabin, collapsible steering wheel, recessed switches and padded surfaces reduce the level of injury in collision. Fuel tank was relocated from the tail to above the rear axle. These features made the S-class the safest car in the world. Moreover, in its final year, it introduced the world's first ABS anti-lock brake system.

The chassis was a big departure from the previous generation. While the front double-wishbone setup sounds similar, it got anti-dive geometry and zero Kingpin offset (i.e. the steering axis falls onto the center of tire contact patch). The latter improved its steering response and reduced kickback a lot. At the rear, the low-pivot swing axles finally became history, as they were replaced with semi-trailing arms. This tamed the oversteer of its predecessor, making its handling safer and more predictable.



In the powertrain side, the 2.8-liter straight-six of 280SE/SEL became twin-cam and delivered an impressive 185hp (up 25hp). V8 models finally got proper names – 350SE/SEL and 450SE/SEL. They were good for 200hp and 225hp respectively, more or less the same as the ones introduced late in the life of the previous generation. The automatic transmissions now got torque converter instead of the previous fluid coupling for enhanced smoothness.

Autocar tested both 280SE and 450SEL. They topped 125 mph and 134 mph respectively, and accelerated from rest to 60 mph in 9.7 and 9.1 seconds respectively. The 280SE was praised for sweet revving engine, good handling and ride. Performance of 450SEL was disappointing, partly due to the power-sipping 3-speed automatic (lesser models used 4-speed auto), partly due to its extra weight. However, the British magazine praised it for refined ride, responsive handling that belied its size and superb power steering. The latter was light yet quick and free of kickback. No wonder 450SE/SEL was crowned European Car of the Year in 1974.

Like the previous generation, W116 was offered with a high-performance model, 450SEL 6.9. This will be dealt with a separate article.

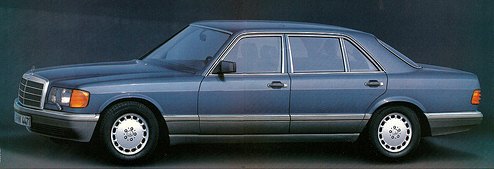

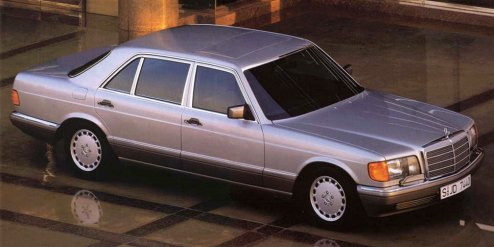

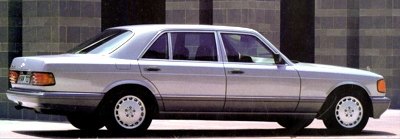

W126 (1979)



With a total sales of nearly 900,000 units (including sedan and coupe), W126 is by far the best selling S-class of all. It also had the longest life (12 years). If not the best of the best, how could it be so successful ?

A couple of things mark W126 out of other S-class series. The first is a timeless design. Most cars age within a few years. Good designs may manage 20 years. But the W126 seems never age. Even today, 30 years after its debut, it still looks as handsome and elegant as before. A key contribution is the way it treated bumpers and side skirts, making them working in harmony with the rest of the body. However, most important is it did everything so right. The transition from one plane to another is smooth and flawless. The integration of features into the car approaches perfection. The only thing prevents it from matching W108 is the lack of classical features, which made it less special from modern eyes. That said, give it another 20 years and car collectors then may have different view.


Another thing marks the W126 out is the sense of solidity it delivers. This can be seen externally, of course, but the feel gets stronger once you have sat inside. From its structure and build quality, this S-class feels incredibly solid. It is void of the complication and unreliability of subsequent S-classes, just gives you a very dependable feel.

The chassis of W126 was an evolution from the previous generation. This mean it continued to employ semi-trailing arms as rear suspensions. The biggest advancement was aerodynamics (coefficient of drag lowered from 0.41 to 0.36) and weight reduction. They contributed to a 10-percent reduction of fuel consumption. Besides, more safety features were introduced to keep it at the forefront of safety, for example, air bags, seatbelt pretensioners and the standard fitment of ABS.

At launch, it offered 3 choices of engines: the carried over 185hp 2.8 dohc straight-six (280SE/SEL), new 218hp 3.8-liter sohc V8 (380SE/SEL) and 240hp 5.0-liter sohc V8 (500SE/SEL). The V8s were developed from the old 3.5 and 4.5-liter unit respectively, but with capacity increased and changed to alloy block to save weight. 4-speed automatic transmission became standard on most models, and now they were computer-controlled. They provided two shift patterns, Sport and Economy, and shift points were adaptive to driving conditions.


During its long life, the S-class was facelifted once and got engine updates many times. The 3.8 V8 was superseded with 4.2-liter unit (420SE/SEL). The 2.8 engine was substituted by 2.6 and 3.0-liter sohc sixes. Following the introduction of 5.6-liter V8 in 1985, 560SEL became the flagship model. In Europe it was good for 300hp and 155 mph, although Autocar thought it was not as accomplished as BMW 750i, which was V12-powered.

On the road, W126 was praised for well-weighted power steering, excellent high-speed stability and a nimble handling for its size. Its semi-trailing arm suspensions made it an inherent understeerer, but by applying power it could be turned into progressive power slide. On the downside, its ride was slightly too firm for a luxury car (I can confirm this, as I had a couple of rides in the car), and both wind and road noises were not very well insulated from the cabin. Such a combination of handling and ride characteristic was quite surprising.

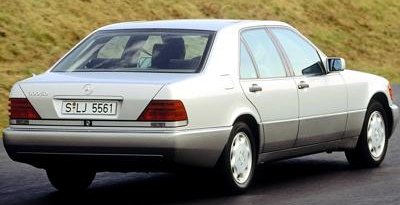

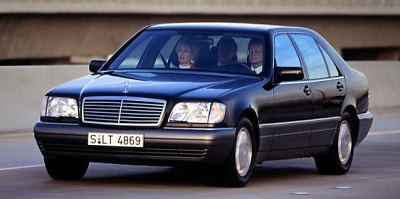

W140 (1991)



W140 showed how things could go wrong if you pursue luxury, quality, power and everything at all costs. It was born when Lexus LS400 and Infiniti Q45 started challenging the German at the top luxury segment. To fend off the competition, Mercedes spent enormous money to develop W140. It made the car much larger than the competition, gave it a modernized look (inspired by the 1989 SL-class), all-new suspensions (subframe-mounted double-wishbones up front; multi-link setup at the rear), a new 4-valve engine family (231hp 3.2 straight-six, 286hp 4.2 V8 and 326hp 5.0 V8) and even a 6.0-liter 48-valve V12 good for 408 hp. The latter was a response to BMW's V12, and overwhelmed it easily. Besides, the W140 got many luxury features not available to the class, such as double glazing windows, electric doors and boot lid closing, electric folding door mirrors and speed-sensitive power steering. As a result, it weighed 400 kg more than its predecessor, hampering its performance and fuel economy. Moreover, it became extremely expensive, so it managed only half the sales of W126 during its 7 years life span. The project resulted in loss.



However, it is undeniable that the W140 was the world's best luxury car at the time. Especially in the form of 600SEL, it was powerful and quick (0-60 mph was possible in 6.7 seconds), spacious, comfortable and refined. Noise suppression and ride quality were not as good as Lexus, but the big Mercedes had better handling, a surprising triumph considering its size and weight. The over-engineering perfected most areas. As long as buyers could afford larger engines and the resultant fuel bills, nothing could quite match the S-class in the world of luxury motoring.

On the other hand, the press thought it was simply too much - too big, too expensive and too environmental unfriendly. It did not beat its rivals squarely and fairly, just overwhelmed them with more mass, more sophistication and more money. This negative image would not be overcome until the next generation arrived.

It should be noted that the model designations of S-class were changed in 1993. Following the new corporate nomenclature, 300SE, 400SE, 500SE and 600SEL were renamed to S320, S420, S500 and S600 respectively.

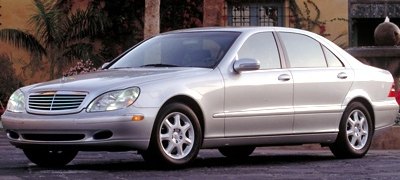

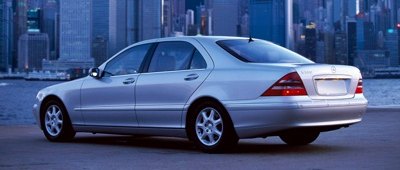

W220 (1998)



Having learned a lesson, the next generation S-class, W220, was designed to be lighter, smarter and less costly to build. Its body shell was smaller in all dimensions, matching the class norm. This, together with using more high-strength steel, all-alloy engines and discarding the double-glazing windows, made the car 300 kg lighter than its predecessor. Besides, the chassis was 40% more rigid than the old car, while a sleeker shape returned a much lower drag coefficient at 0.27. As a result, the W220 could use smaller engines to achieve the same performance. For example, the new S320 was as fast as the outgoing S420, while S500 was faster than the old S600. This mean it was much more frugal than the old car.

The W220 was being developed at a time Mercedes started getting radical - both in design and development process - under the leadership of its CEO Jurgen Schrempp. Its sleek new look appeared to be much younger than ever, but many radical elements, such as the peanut-shaped headlights, round bumper intakes and slim radiator grille, aged quickly over time. This mean it looks rather outdated today. The build quality and reliability also took a nose dive as Schrempp drove for cost-effective engineering. The W220 used cheaper materials in its cabin and its development and testing process was shortened. The latter resulted in many electronics glitches. This was not helped by its vast extension of electronic technologies, e.g. AIRmatic adaptive air suspensions, CCS cylinder cut-off (on 5.0-liter V8), Distronic and Speedtronic computer cruise control, ESP stability control, BAS brake assist, integrated infotainment system...



To standardize engine production and save costs, W220 employed a 90-degree V6 and V8 family. The former needed a balancer shaft to cancel first order vibration. Mercedes believed 4 valves per cylinder could not comply with the cold-start emission requirements of EU 2004 emission standard (which was proved to be wrong), so these engine reverted to SOHC 3 valves per cylinder. The resultant power loss was largely compensated by using dual ignition, variable intake manifolds and intake variable valve timing. Broader torque delivery actually made the cars perform better in real world. At the top of the range, a new 367hp 5.8-liter V12 was developed for S600, again based on the SOHC 3-valve design of the V6 / V8.

In 2002, the V12 was added with twin-turbo, boosting output to an incredible 500hp. The new S600, equipped with Active Body Control suspensions, became an Autobahn rocket. Meanwhile, AMG joined the party with two fast S-class, S55 (powered by 500hp 5.5 supercharged V8) and S65 (612hp 6.0 twin-turbo V12). They had sportier handling and coarser ride than the standard car. However, the regular W220 was never short of talent in handling. The switch from recirculating ball to rack-and-pinion steering improved its steering feel and precision a lot, while adaptive suspensions (AIRmatic or ABC) improved its body control without sacrificing ride quality. It was considered to be a good compromise between handling and comfort.

Commercially, the W220 was more successful than W140. However, its downgraded reliability and build quality cost Mercedes heavily in reputation.

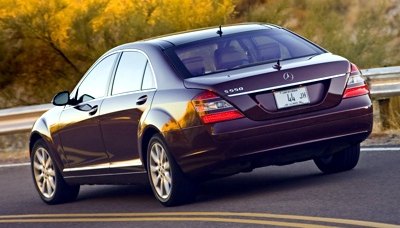

W221 (2005)



Mercedes learned from mistakes in the past. After the over-engineered W140 and the underdeveloped W220, it finally hit the right balance with W221. The new S-class is sized between the two, offers enormous interior space yet weighs only 65 kg more than W220, thanks partly to aluminum hood, trunk lid, doors and front fenders. It keeps a sleek profile and low drag, but the detailed design is far more graceful than the old car.

Inside, the new S-class has its materials and build quality vastly improved, getting back to the top of the game. High-tech features like LCD instrument panel, Night View infrared camera and Pre-Safe safety system distinguished it from rivals. Same go for the super-comfortable front chairs, which come with heating, cooling, massagers and side bolsters that inflate automatically during hard cornering to hold the occupants firmly in place. Besides, the cabin is remarkably quiet and free from road intrusions.

The chassis is an evolution of the outgoing series. The suspension geometry, adaptive air suspensions and steering were refined without big changes. S600 continues to employ active body control. Again, the S-class does not steer as well as BMW 7-series, but it provides a smoother and quieter ride, thus is unquestionably the better luxury car.




The twin-turbo V12 of S600 is largely the same as before, only got a slight, 17hp boost in output. Other engines were renewed. The 90-degree V6 and V8 got 4-valve heads, dual continuous variable valve timing as well as extra capacity, boosting output considerably. Furthermore, the automatic gearbox was upgraded from 5 to 7-speed (S600 kept the 5-speeder as the 7G-Tronic could not withstand its tremendous torque). As a result, all S-class models bar the S600 are significantly quicker than their predecessors. AMG models include S63 and S65, the former got an all-new 525hp 6.2-liter 32-valve V8, while the latter carried over the old engine.

By the turn of the decade, Mercedes focused its development to the green side. In Europe, more and more sales fell to its ever maturing V6 turbo diesel. Meanwhile, Mercedes also introduced S400 Hybrid (powered by V6 plus a small electric motor integral with transmission) as an attempt to narrow the gap from Lexus. In 2010, the V6 and V8 family was overhauled to achieve a 25 percent reduction in emission and fuel consumption. The 90-degree V6 was replaced with a 60-degree V6 with direct injection, auto start-stop and other fuel-saving designs. The new V8 got the same technology, plus a reduction in capacity and addition of twin-turbocharger. The result is even better performance, drivability yet more environmental friendly. AMG's 6.2 V8 was also replaced with a twin-turbo 5.5 V8, with similar improvements.

Although the W221 is still in production at the time of writing, we can conclude that it is a better car than its two predecessors. However, as the S-class is facing tougher competition than ever, it seems difficult to repeat the success of W126 in the foreseeing future.

Specifications

Model
220SE Coupe (W111)
300SE LWB (W112)
280SE (W108)
300SEL 3.5 (W109)
Year of production
1959-68 (W111/112)
1959-68 (W111/112) 1965-72 (W108/109) 1965-72 (W108/109)
No. produced
381,000 units (W111/112) 381,000 units (W111/112) 383,000 units (W108/109) 383,000 units (W108/109)
Layout
Front-engined, Rwd
Front-engined, Rwd Front-engined, Rwd Front-engined, Rwd
L / W / H / WB (mm)
4880 / 1845 / 1422 / 2750
4980 / 1795 / 1475 / 2860 4900 / 1810 / 1440 / 2750

5000 / 1810 / 1440 / 2850

Engine
Inline-6, sohc, 2v/cyl
Inline-6, sohc, 2v/cyl Inline-6, sohc, 2v/cyl V8, sohc, 2v/cyl
Capacity
2195 cc
2996 cc
2778 cc 3499 cc
Power
120 hp
185 hp
160 hp
200 hp
Torque
152 lbft
205 lbft
177 lbft
211 lbft
Gearbox
4M
4A
4M
4A
Suspensions (F/R)
Double-wishbones /
Swing axle
Double-wishbones /
Swing axle, air
Double-wishbones /
Swing axle
Double-wishbones /
Swing axle, air
Weight
1408 kg
1632 kg
1560 kg
1730 kg
Top speed
106 mph*
114 mph*
120 mph
130 mph
0-60 mph
12.4 sec*
10.4 sec*
11.2 sec*
9.4 sec
0-100 mph
44.7 sec*
34.2 sec*
40 sec*
N/A

Model
280SE (W116)
450SEL (W116)
420SE (W126)
560SEL (W126)
Year of production
1972-80 (W116)
1972-80 (W116) 1979-91 (W126) 1979-91 (W126)
No. produced
473,000 units (W116) 473,000 units (W116) 892,000 units (W126) 892,000 units (W126)
Layout
Front-engined, Rwd
Front-engined, Rwd Front-engined, Rwd Front-engined, Rwd
L / W / H / WB (mm)
4960 / 1870 / 1430 / 2865
5060 / 1870 / 1430 / 2965 5020 / 1820 / 1437 / 2935

5160 / 1820 / 1446 / 3070

Engine
Inline-6, dohc, 2v/cyl
V8, sohc, 2v/cyl V8, sohc, 2v/cyl V8, sohc, 2v/cyl
Capacity
2746 cc
4517 cc
4196 cc 5547 cc
Power
185 hp
225 hp
218 hp
299 hp
Torque
176 lbft
278 lbft
243 lbft
335 lbft
Gearbox
4A
3A
4A
4A
Suspensions (F/R)
Double-wishbones /
semi-trailing arms
Double-wishbones /
semi-trailing arms
Double-wishbones /
semi-trailing arms
Double-wishbones /
semi-trailing arms
Weight
1665 kg
1825 kg
1640 kg
1780 kg
Top speed
125 mph*
134 mph*
135 mph*
147 mph*
0-60 mph
9.7 sec*
9.1 sec*
7.6 sec*
7.1 sec*
0-100 mph
30 sec*
24.4 sec*
20.8 sec*
17.4 sec*

Model
500SE (W140)
600SEL (W140)
S320 (W220)
S500L (W220)
Year of production
1991-98 (W140)
1991-98 (W140) 1998-2005 (W220) 1998-2005 (W220)
No. produced
433,000 units (W140) 433,000 units (W140) 485,000 units (W220) 485,000 units (W220)
Layout
Front-engined, Rwd
Front-engined, Rwd Front-engined, Rwd Front-engined, Rwd
L / W / H / WB (mm)
5113 / 1886 / 1486 / 3040
5213 / 1886 / 1486 / 3140 5038 / 1855 / 1444 / 2965

5163 / 1855 / 1444 / 3085

Engine
V8, dohc, 4v/cyl
V12, dohc, 4v/cyl V6, sohc, 3v/cyl, VVT,
twin-spark, var intake.
V8, sohc, 3v/cyl, VVT,
twin-spark, var intake.
Capacity
4973 cc
5987 cc
3199 cc 4966 cc
Power
320 hp
408 hp
224 hp
306 hp
Torque
347 lbft
427 lbft
232 lbft
339 lbft
Gearbox
5A
5A
5A
5A
Suspensions (F/R)
Double-wishbones /
multi-link
Double-wishbones /
multi-link
All multi-link All multi-link, adaptive damping + air springs
Weight
2130 kg
2300 kg
1760 kg
1855 kg
Top speed
155 mph*
159 mph*
145 mph*
155 mph (limited)
0-60 mph
6.8 sec*
6.7 sec*
8.4 sec*
6.2 sec*
0-100 mph
N/A
15.8 sec*
22.6 sec*
15.1 sec*

Model
S600 (W220)
S350 (W221)
S500 (W221)
S600 (W221)
Year of production
1998-2005 (W220) 2005- (W221) 2005- (W221) 2005- (W221)
No. produced
485,000 units (W220) >500,000 units (W221) >500,000 units (W221) >500,000 units (W221)
Layout
Front-engined, Rwd
Front-engined, Rwd Front-engined, Rwd Front-engined, Rwd
L / W / H / WB (mm)
5163 / 1855 / 1444 / 3085 5076 / 1871 / 1473 / 3035 5076 / 1871 / 1473 / 3035

5206 / 1871 / 1473 / 3165

Engine
V12, sohc, 3v/cyl,
twin-spark, twin-turbo.
V6, dohc, 4v/cyl, VVT,
var intake.
V8, dohc, 4v/cyl, VVT,
var intake.
V12, sohc, 3v/cyl,
twin-spark, twin-turbo.
Capacity
5513 cc
3498 cc
5461 cc 5513 cc
Power
500 hp
272 hp
388 hp
517 hp
Torque
590 lbft
258 lbft
391 lbft
612 lbft
Gearbox
5A
7A
7A
5A
Suspensions (F/R)
All multi-link,
active anti-roll
All multi-link, adaptive air spring + adaptive damping
All multi-link, adaptive air spring + adaptive damping All multi-link,
active anti-roll
Weight
2060 kg
1805 kg
1865 kg
2105 kg
Top speed
155 mph (limited)
155 mph (limited)
155 mph (limited)
155 mph (limited)
0-60 mph
4.4 sec*
6.9 sec
5.3 sec**
4.2 sec**
0-100 mph
10.0 sec*
N/A
13.2 sec**
9.7 sec**

* Tested by Autocar
** Tested by Car and Driver
